2 Story Narrow Lot Floor Plans
Custom Modular Homes

Modular Home Floor Plans

Narrow lot open floor plan 4 or 5 bedroom 3 full baths custom designed modular home, Jersey Shore. The Catherine
Open Floor Plan
4-5 bedrooms, 3 baths

Approx. 2,128 sq. ft.
  Middletown, NJ open floor plan 3 bedroom, 2 1/2 bath home with 2,350 sq. ft. of living space. The Robert
Open Floor Plan
3 bedrooms, 2 1/2 baths

Approx. 2,350 sq. ft.

Vacation home 3 or 4 bedroom floor plan designed by owner for 1st floor living, Monmouth County, NJ. The Suzanne
Open Floor Plan
3-4 bedrooms, 2 baths

Approx. 2,350 sq. ft.
  Open custom modular floor plan, 5 bedroom 3 1/2 bath modular home, Jersey Shore, NJ. The Elizabeth
Open Floor Plan
5 bedrooms, 3 1/2 baths

Approx. 2,625 sq. ft.

Open floor plan large two story 3 bedroom, 3 bath home with 2750 square feet of living space. The Martin
Open Floor Plan
3 bedrooms, 3 baths

Approx. 2,750 sq. ft.
  Open floor plan design 5 bedrooms and 3 full baths, using modular construction, Monmouth County, NJ. The Philadelphia
Open floor Plan
5 bedrooms, 3 baths

Approx. 2,760 sq. ft.

Well-designed 5 bedroom, 2 1/2 baths modular home open floor plan, front porch with gazebo. The Springdale
Open Floor Plan
4-5 bedrooms 2 1/2 baths

Approx. 2,975 sq. ft.
  4 bedroom 3 1/2 bath floor plan for modular home on narrow lot provides a full 3,200 square feet. The Patrick
Open Floor Plan
4 bedrooms, 3 1/2 baths

Approx. 3,200 sq. ft.

5 or 6 bedroom  modular home open floor plan, 3 floors comprising 3,200 square ft. of habitable space. The Trenton
Open Floor Plan
5-6 Bedrooms, 3 1/2 Baths

Approx. 3,200 sq. ft.


Open Floor Plan
Modular Home Floor Plans




top




Open floor plan narrow lot custom designed modular home with 4 or 5 bedrooms, 3 full baths at the Jersey Shore.
Approximately 2,128 sq. ft. — Two Story

Lavallette, NJ
Ocean County

“Using the modular approach
cut my construction time at
least in half.”

THE CATHERINE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,100 Bedrooms: 4/5 Crawl Space
Upper: 1,100 Full Baths: 3 Width: 28’
Third: Attic   Length: 40’/46’



Open floor plan kitchen, dining and great rooms. First floor plan includes a den which can be converted to a future bedroom.   Open deck off the master bedroom provides plenty of privacy in this modular home. Large closets are generally built into most RBA custom designed second floor plans.
First Floor   Second Floor


top




Middletown, NJ narrow lot home with long front porch and stately columns provides a nice look and functionality.

Approximately 2,350 sq. ft. — Two Story

Middletown, NJ
Monmouth County

“We did not need to use an
architect, which is a great
time and money saver.”

THE ROBERT

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,250 Bedrooms: 3 Crawl Space
Upper: 1,100 Full Baths: 2 Width: 28’
Third: 300 Half Baths: 1 Length: 42’/46’

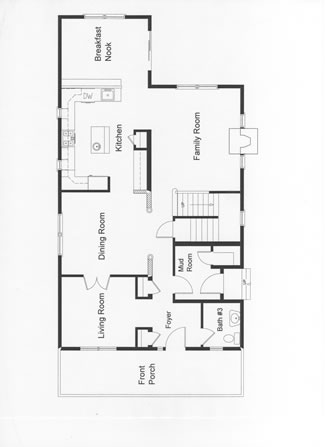

Open floor plan designed kitchen, breakfast nook and great room for easy living. Special features include granite countertops and gas remote controlled fireplace.   Large 3 bedroom, 2 full baths and large closet space. Access to the attic provided by walk-up stairs.
First Floor   Second Floor


top




Custom modular floor plan designed by owner features an enclosed front porch, 4 bedrooms, large walk-up attic area and beautiful rear deck.
Approximately 2,350 sq. ft. — Two Story

Manasquan, NJ
Monmouth County

THE SUZANNE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,232 Bedrooms: 3-4 Crawl
Upper: 1,120 Full Baths: 2 Width: 28’
Third: Attic   Length: 40’/44’



Open floor plan kitchen and family room leads to large rear deck. Master bedroom and bath on first floor with a large screened in porch.    Second floor custom modular floor plan provides open space family room, 2 bedrooms, large bath with whirlpool tub and walk-up attic for additional living space.
First Floor   Second Floor


top




Distinctive, well designed narrow lot custom modular home takes full advantage of open floor plan for comfortable living.
Approximately 2,625 sq. ft. — Two Story

Lavallette, NJ
Ocean County

THE ELIZABETH
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,344 Bedrooms: 5 Crawl
Upper: 1,280 Full Baths: 3 Width: 32”
Third: Attic Half Baths: 1 Length: 44’/60’

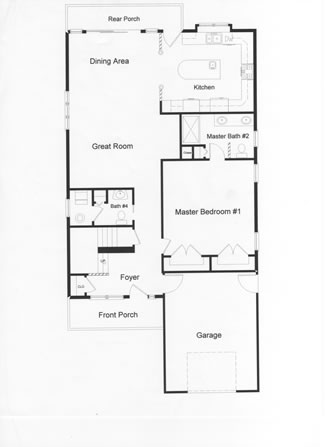

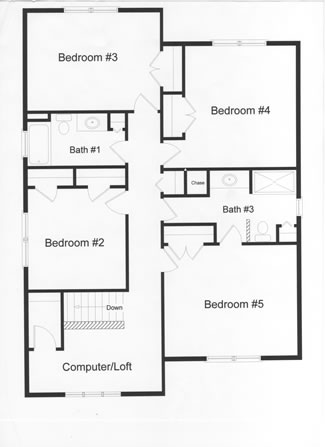

Open floor plan area with large windows leading to a rear deck. Large custom designed modular kitchen, and integral garage and first floor bedroom.   4 bedrooms, 2 full baths and computer room in this distinctive floor plan. Steps to attic storage area, open computer room and large master bedroom and bath area.
First Floor   Second Floor


top




Functional integral designed garage provides storage space and work bench for the do it yourself home owner in this narrow lot custom designed Jersey Shore modular home.
Approximately 2,750 sq. ft. — Two Story

Lavallette, NJ
Ocean County

“RBA has shown our home
to potential customers, and
they cannot believe it is
modular construction! It
really is a custom home. It is
just fabulous!”

THE MARTIN

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,425 Bedrooms: 3 Crawl Space
Upper: 1,325 Full Baths: 3 Width: 32’
Third: Attic Garage: 16’ x 20’ Length: 44’-58’



Wide open floor plan with large kitchen and great room. Large windows provide lots of light and an airy look.   Hugh master bedroom with a balcony off the rear of the second floor. Computer area is provided in this second floor modular design.
First Floor   Second Floor


top




One of the most attractive modular homes built by RBA Homes. This popular home, on a narrow lot was well designed for this large family to provide a fully finished basement and third floor for an exceptional amount of living space.
Approximately 2,760 sq. ft. — Two Story

Sea Girt, NJ
Monmouth County

“We never could have built
this house as cost effectively
without taking the modular
approach with RBA, and we
certainly could not have done
it in the same timeframe.
Every other builder we talked
to said they couldn’t have
touched our price!"

THE PHILADELPHIA

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,380 Bedrooms: 5 Basement: Full
Upper: 1,380 Full Baths: 3 Width: 30’
Third: 450   Length: 46’

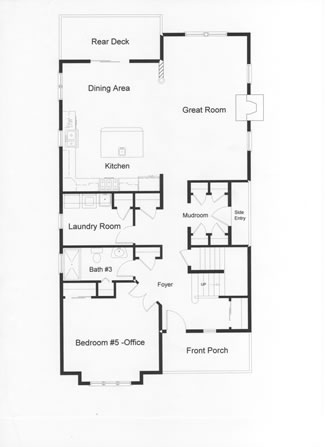

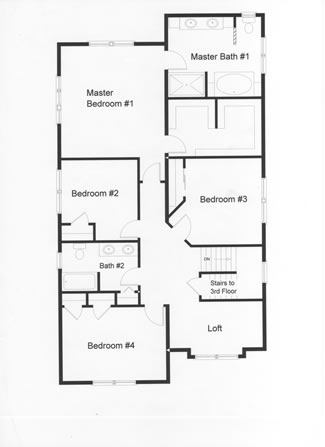

Narrow lot modular home construction did not deter from the exceptional look and open floor plan design. First floor office area which can be converted to a bedroom if needed make this home very functional.   Hugh master bedroom and bath with three additional bedrooms and loft area with stairs leading to a finished attic.
First Floor   Second Floor


top




Elegant front elevation with front porch and gazebo, 2.975 square feet open floor plan to this custom modular home of 4 to 5 bedrooms, full basement and large attic area.
Approximately 2,975 sq. ft. — Two Story

Spring Lake, NJ
Monmouth County

THE SPRINGDALE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,486 Bedrooms: 4-5 Basement
Upper: 1,486 Full Baths: 2 Width: 28’
Third: Attic Half Baths: 1 Length: 52’/55’



Open floor plan for easy living in this custom designed modular home. Large open kitchen, center island, breakfast nook, family room, living and dining room. Laundry room with side entry.   Effective use of living space with this floor plan designed by the owner. Four or five bedrooms large master bedroom and both with whirlpool tub and shower.
First Floor   Second Floor


top




The Patrick
Approximately 3,200 sq. ft. — Two Story

Spring Lake, NJ
Monmouth County

“The RBA team was very
adaptable in the field. Our
town has some tough zoning
regulations that we needed
to work around...”

THE PATRICK

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,700 Bedrooms: 4 Crawl Space
Upper: 1,500 Full Baths: 3 Width: 32’
Third: 600 Half baths: 1 Length: 53’/55’



The open floor plan of the first floor and all weather room in the rear provides plenty of room for easy living and entertaining. Effective open floor plan for Jersey Shore summer living experience.   4 Bedrooms are well planned on the second floor of this modular home
First Floor   Second Floor


top





Distinctive Jersey Shore 5 or 6 bedroom, 3 full bath home on a narrow lot received the Home of the Month award by the modular home manufacturer.
Approximately 3,200 sq. ft. — Three Story

Ortley Beach, NJ
Ocean County

“We have recommended RBA many
times and we will again. We love to
show people our home.”


In the news: 'The Trenton' from RBA Homes
wins "Home of the Month."

THE TRENTON
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,176 Bedrooms: 5-6 Crawl
Upper: 1,344 Full Baths: 3 Width: 28’
Third: 680 Half Baths: 1 Length: 42’/50’

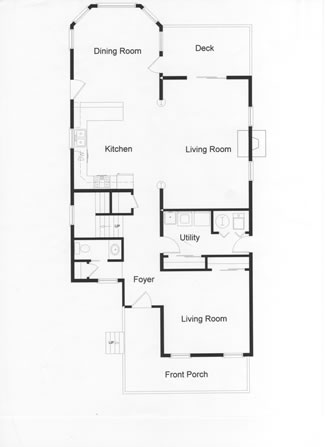

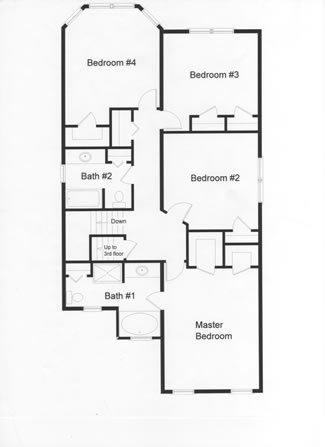

Custom modular home with 1,176 square feet of open floor plan. Private rear covered porch and deck.   4 bedrooms, 2 full baths on the second floor of this well designed modular home
First Floor   Second Floor
