Vacation home 3 or 4 bedroom floor plan designed by owner for 1st floor living, Monmouth County, NJ. The Suzanne
Open Floor Plan
3-4 bedrooms, 2 baths

Approx. 2,350 sq. ft.
  Home floor plan features exceptional use of space designed into 2,016 square foot home. The Elm
Open Floor Plan
4 Bedrooms, 2 1/2 Baths

Approx. 2,016 sq. ft.

4 bedroom modular home custom floor plan 2,128 square foot, two story, attic and expansive porch. The Washington
Open Floor Plan
4 Bedrooms, 2 1/2 Baths

Approx. 2,128 sq. ft.
  Large two story home floor plan 4 bedrooms, 2 1/2 baths 2,900 square feet, Middlesex Country, NJ The Gordon
Open Floor Plan
4 Bedrooms, 2 1/2 Baths

Approx. 2,900 sq. ft

Modular home open floor plan 4 Bedrooms, 3 full baths and huge basement modular home. The Summit
Open Floor Plan
4 Bedrooms, 3 Baths

Approx. 3,280 sq. ft.
  4 bedroom 3 1/2 bath floor plan for modular home on narrow lot provides a full 3,200 square feet. The Patrick
Open Floor Plan
4 bedrooms, 3 1/2 baths

Approx. 3,200 sq. ft.

2 story Colonial custom modular floor plan with 2,960 SF of space, full basement, Brielle, NJ The Woodland
Open Floor Plan
4-5 Bedrooms, 2 1/2 Baths

Approx. 2,960 sq. ft.
  Well-designed 5 bedroom, 2 1/2 baths modular home open floor plan, front porch with gazebo. The Springdale
Open Floor Plan
4-5 bedrooms 2 1/2 baths

Approx. 2,975 sq. ft.

Narrow lot open floor plan 4 or 5 bedroom 3 full baths custom designed modular home, Jersey Shore. The Catherine
Open Floor Plan
4-5 bedrooms, 3 baths

Approx. 2,128 sq. ft.
  Jersey Shore home floor plan provides 2,520 SF 4 or 5 bedrooms and 3 full baths, Chadwick Beach NJ. The Venice
Open Floor Plan
4-5 Bedrooms, 3 Baths

Approx. 2,520 sq. ft.

Open Floor Plan
Modular Home Floor Plans


top




Custom modular floor plan designed by owner features an enclosed front porch, 4 bedrooms, large walk-up attic area and beautiful rear deck.
Approximately 2,350 sq. ft. — Two Story

Manasquan, NJ
Monmouth County

THE SUZANNE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,232 Bedrooms: 3-4 Crawl
Upper: 1,120 Full Baths: 2 Width: 28’
Third: Attic   Length: 40’/44’

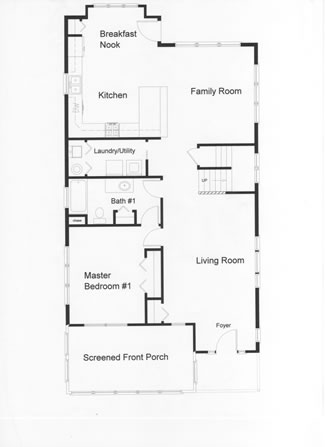

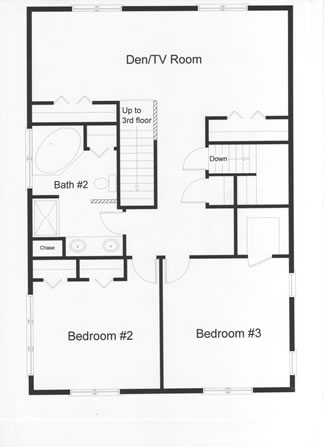

Open floor plan kitchen and family room leads to large rear deck. Master bedroom and bath on first floor with a large screened in porch.    Second floor custom modular floor plan provides open space family room, 2 bedrooms, large bath with whirlpool tub and walk-up attic for additional living space.
First Floor   Second Floor


top


The distinctive front porch was designed by the owner after examining many homes to be sure the look was perfect for the neighborhood.
Approximately 2,016 sq. ft. — Two Story

Fair Haven , NJ
Monmouth County



THE ELM
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,008 Bedrooms: 4 Full Basement
Upper: 1,008 Full Baths: 2 Width: 28’
Third: Attic Half Baths: 1 Length: 36’

See more details on the Testimonial Page.

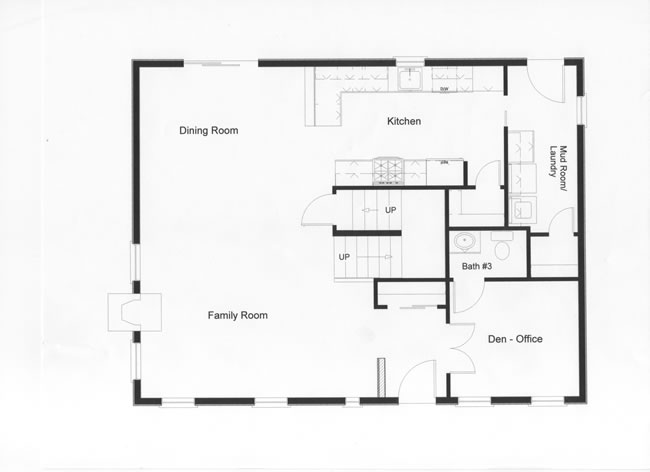

Effective use of space was provided in this open floor plan. Excellent traffic flow for entertaining and family living and the privacy of the office incorporated into approx. 1,000 SF of first floor design.
FIRST FLOOR

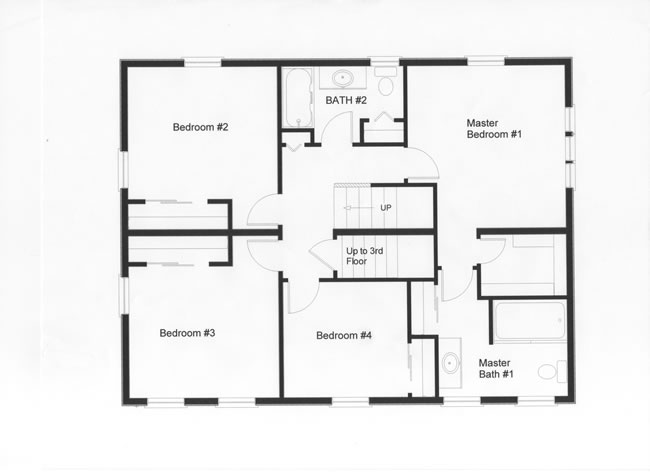

This well designed modular floor plan provides 4 bedrooms on the second floor. Notice the utilization of maximum living space with fewer hallways in this modular home plan with walk-up attic stairs.
SECOND FLOOR


top



modular vacation home features efficient use of open floor plan and expansive wrap around porch
Approximately 2,128 sq. ft. — Two Story

Ortley Beach, NJ
Ocean County



THE WASHINGTON

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,064 Bedrooms: 4 Crawl
Upper: 1,064 Full Baths: 2 Width: 28’
Third: Attic Half Baths: 1 Length: 38’

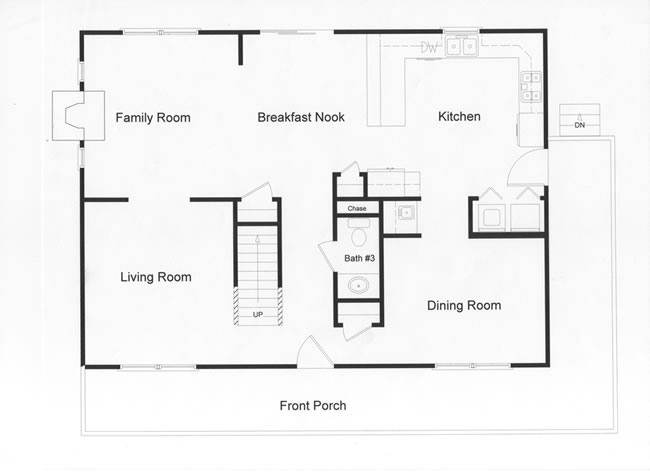

28 ft wide by 38 ft long, custom modular open floor plan large country kitchen and open living space
FIRST FLOOR

4 bedroom, 2 full baths and large master bedroom.  Efficient use of custom modular floor plan design
SECOND FLOOR


top


Large wide lot enabled this custom designed two story modular home built with full basement and two car garage and functional first floor open floor plan for great traffic flow.
Approximately 2,900 sq. ft. — Two Story

Edison, NJ
Middlesex County

“I am not a designer! But with the help of the RBA design staff, I am very happy with my large and bright kitchen.”

THE GORDON

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,470 Bedrooms: 4 Basement: Full
Upper: 1,430 Full Baths: 2 Width: 32’
Third: Attic Half Baths: 1 Length: 46’

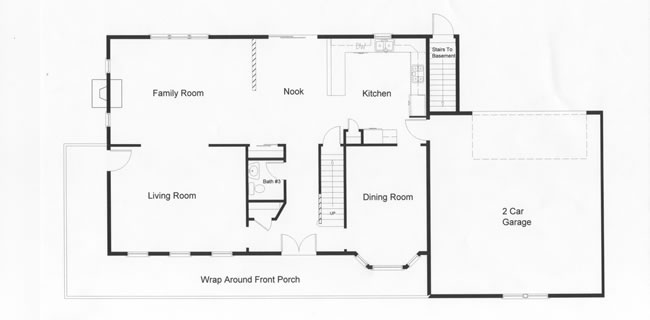

Open floor plan provides 1470 square feet of modular home design. Access to the full basement from the rear exterior was designed into this modular home floor plan.
FIRST FLOOR

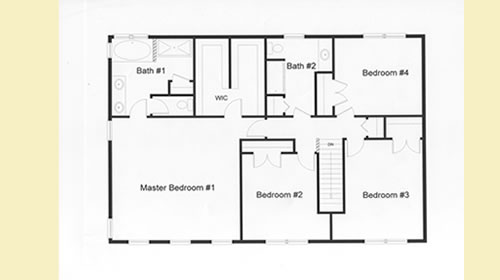

Hugh master bedroom and double walk-in closet in the second floor plan. Access to the large attic area from the second floor with a walk up stair case.
               SECOND FLOOR


top


Large impressive modular home provides a well-designed open style floor plan, huge finished basement and attic area for storage.
Approximately 3,280 sq. ft. — Two Story

Northvale, NJ
Bergen County



THE SUMMIT
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,680 Bedrooms: 4 Basement
Upper: 1,600 Full Baths: 3 Width: 32’
Third: Attic   Length: 50’/55’


Open floor plan allows easy traffic flow.
FIRST FLOOR

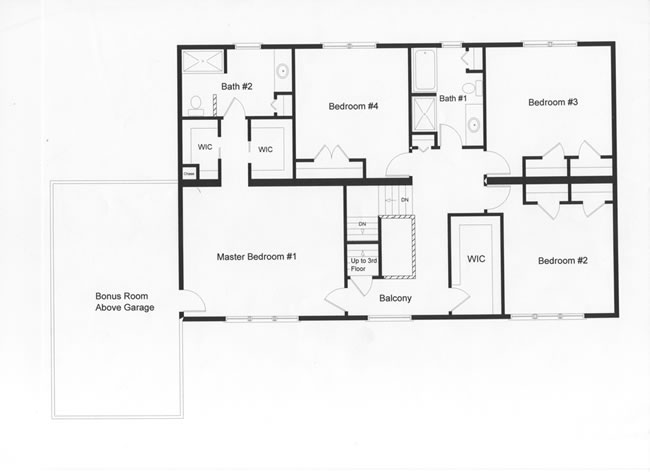

Efficient 4 bedroom floor plan. Distinctive master bedroom and bath on the second floor.
SECOND FLOOR


top




The Patrick
Approximately 3,200 sq. ft. — Two Story

Spring Lake, NJ
Monmouth County

“The RBA team was very
adaptable in the field. Our
town has some tough zoning
regulations that we needed
to work around...”

THE PATRICK

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,700 Bedrooms: 4 Crawl Space
Upper: 1,500 Full Baths: 3 Width: 32’
Third: 600 Half baths: 1 Length: 53’/55’

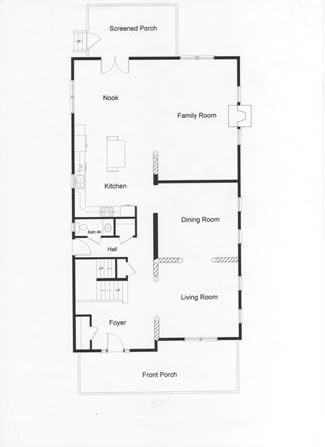

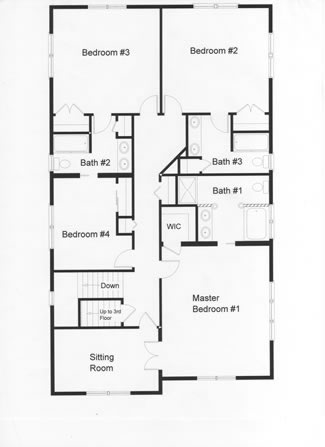

The open floor plan of the first floor and all weather room in the rear provides plenty of room for easy living and entertaining. Effective open floor plan for Jersey Shore summer living experience.   4 Bedrooms are well planned on the second floor of this modular home
First Floor   Second Floor


top




The front porch was a perfect look for this Jersey Shore home, on a large property. The full basement and 2 car garage was essential for this family when planning their dream home.
Approximately 2,960 sq. ft. — Two Story

Brielle, NJ
Monmouth County

THE WOODLAND
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,274 Bedrooms: 4-5 Full Basement
Upper: 1,204 Full Baths: 2 Width: 28’
Storage Attic Half Baths: 1 Length: 43’
Full Front Purch 2-Car Garage


"The entire process took one year from buying the land to moving into our new home.

The design process was a highlight— Pandora Jacoubs and Bob Dull were wonderful at design, ideas and drawings."

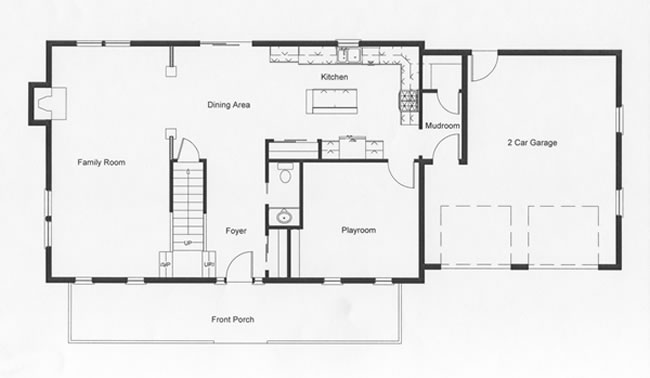

Designed with the open floor plan in mind the homeowners also incorporated a playroom for the kids on the first floor. Access to the second floor from the family room or foyer was intentionally designed into the modular home floor plan.
FIRST FLOOR

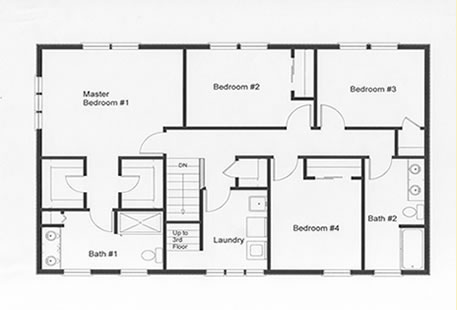

The laundry room on the second floor has become popular with busy moms. The huge master bedroom with his and hers walk-in closets was an important factor in this modular home design.
SECOND FLOOR


top




Elegant front elevation with front porch and gazebo, 2.975 square feet open floor plan to this custom modular home of 4 to 5 bedrooms, full basement and large attic area.
Approximately 2,975 sq. ft. — Two Story

Spring Lake, NJ
Monmouth County

THE SPRINGDALE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,486 Bedrooms: 4-5 Basement
Upper: 1,486 Full Baths: 2 Width: 28’
Third: Attic Half Baths: 1 Length: 52’/55’

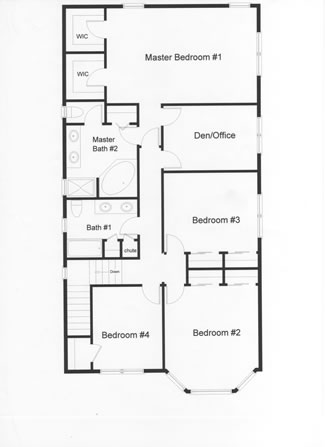

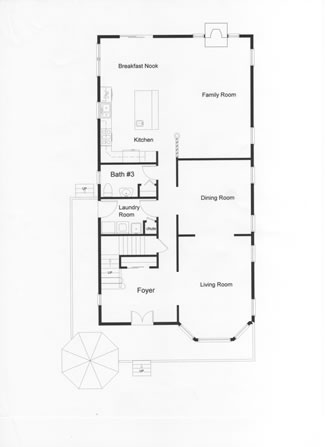

Open floor plan for easy living in this custom designed modular home. Large open kitchen, center island, breakfast nook, family room, living and dining room. Laundry room with side entry.   Effective use of living space with this floor plan designed by the owner. Four or five bedrooms large master bedroom and both with whirlpool tub and shower.
First Floor   Second Floor


top




Open floor plan narrow lot custom designed modular home with 4 or 5 bedrooms, 3 full baths at the Jersey Shore.
Approximately 2,128 sq. ft. — Two Story

Lavallette, NJ
Ocean County

“Using the modular approach
cut my construction time at
least in half.”

THE CATHERINE

LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,100 Bedrooms: 4/5 Crawl Space
Upper: 1,100 Full Baths: 3 Width: 28’
Third: Attic   Length: 40’/46’

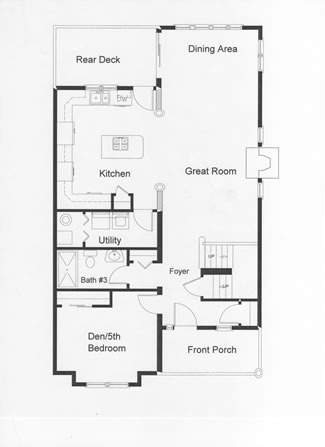

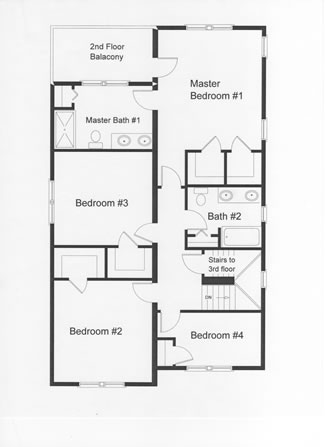

Open floor plan kitchen, dining and great rooms. First floor plan includes a den which can be converted to a future bedroom.   Open deck off the master bedroom provides plenty of privacy in this modular home. Large closets are generally built into most RBA custom designed second floor plans.
First Floor   Second Floor


top




Recessed front door entry provides distinctive look and sets this home apart from other modular homes. 	A one car garage was important for storage space, for this home located on the Jersey Shore.
Approximately 2,520 sq. ft. — Two Story

Chadwick Beach, NJ
Ocean County



THE VENICE
LIVING AREA (SQ FT) ROOMS FOUNDATION
Main: 1,344 Bedrooms: 4-5 Crawl foundation
Upper: 1,008 Full Baths: 3 Width: 28’
Bonus Room: 168 Garage: 20' x 12' Length: 48’

See more details on the Testimonial Page.

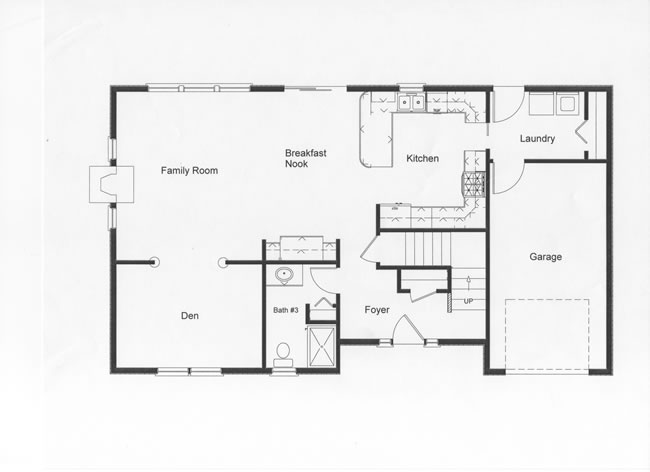

The RBA Homes design team and the homeowner spent many hours planning the open floor plan that this home provides. A full bath on the first floor was an important factor in planning. The den can become a bedroom if needed.
FIRST FLOOR

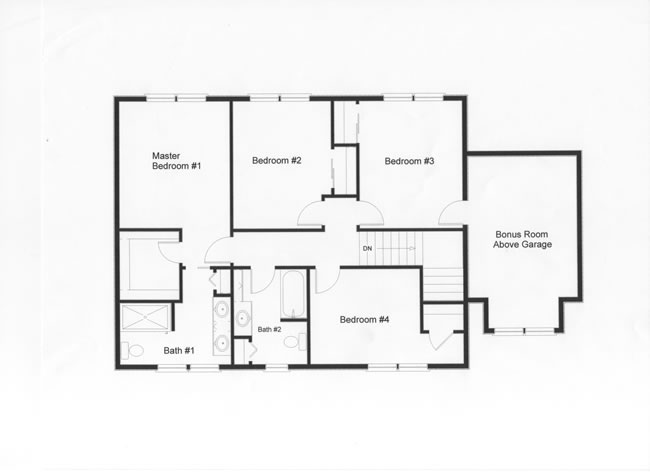

Floor plan shows how you can effectively utilize the modular home concept to design more living space into the home. The bonus room over the garage provides excellent storage space or a 5th bedroom.
SECOND FLOOR
